Product Details

  • Log In for Price
  • Minimum Order Quantity: 25
  • Available Only in Quantities of: 0
  • Case Quantity: 200
  • Log in to see if custom discounts apply
Locations Availability
METRIC THREADED PRODUCTS In Stock
item image

3158106100

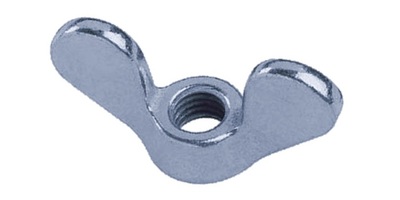

M 6-1.0 Wing Nut, Steel Zinc German Type DIN 315GT.

  • Log In for Price
  • UM: C
  • Weight: 0.0176
  • Nut Type and Drive: German Type, Wing
  • Specification: DIN 315GT
  • Thread Specifications: Metric ISO 965 Coarse Right Hand Internal Thread Fit 6H Tolerance
  • Material and Hardness: Malleable Cast Iron (GTS-35-10) in Accordance to DIN 1692 , HB 150
  • Proof Load: In Accordance to DIN 1692 for Malleable Cast Iron (GTS-35-10)
  • Plating Finish: Clear Zinc Cr3 Trivalent Passivated
  • REACH and RoHS: REACH and RoHS Complaint
  • Country of Origin: Taiwan, China, Vietnam, South Korea, or EU Countries
  • EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
Product Specifications
Diameter M 6
Thread Pitch 1.0
Wing Span 33mm
Height 17mm
