Product Details

  • Log In for Price
  • Available Only in Quantities of: 0
  • Case Quantity: 0
  • Log in to see if custom discounts apply
Locations Availability
METRIC THREADED PRODUCTS Out of Stock
item image

4639716001

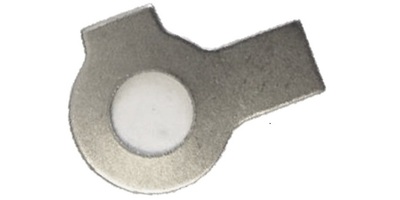

M16 Double Tab Washer, Stainless Steel A4. DIN 463

  • Log In for Price
  • UM: C
  • Weight: 0.0139
  • Washer Type: Double Tab
  • Specification: DIN 463
  • Material and Hardness: A4 Stainless Steel in Accordance to ISO 3506-7
  • Plating Finish: Stainless Steel Passivated
  • REACH and RoHS: REACH and RoHS Complaint
  • Country of Origin: Taiwan, China, Vietnam, South Korea, or EU Countries
  • EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
Product Specifications
Screw Dia. M16
Inside Dia. 17mm
Outside Dia. 30mm
Thickness 1mm
Tab Width 15mm
Tab Len. 1 32mm
Tab Len. 2 18mm
