Product Details
5468008001

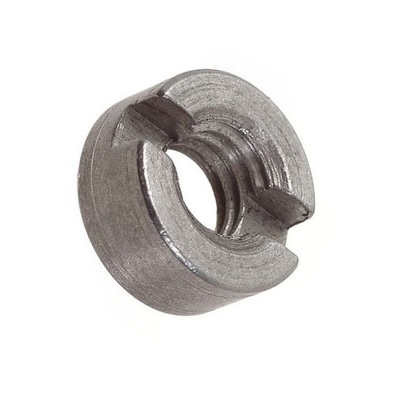

M 8-1.25 Slotted Round Nut, Steel Plain. DIN 546
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | In Stock |
5468008001
M 8-1.25 Slotted Round Nut, Steel Plain. DIN 546
- Log In for Price
- UM: C
- Weight: 0.0123
- Nut Type and Drive: Round, Slotted
- Specification: DIN 546
- Thread Specifications: Metric ISO 965 Coarse Right Hand Internal Thread Fit 6H Tolerance
- Material: Low Carbon Steel in Accordance to DIN 546
- Plating Finish: Plain and Light Oil
- REACH and RoHS: REACH and RoHS Complaint
- Country of Origin: Taiwan, China, Vietnam, South Korea, or EU Countries
- EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | M 8 |
| Thread Pitch | 1.25 |
| Outside Dia. | 14mm |
| Height | 6.5mm |
| Slot Width | 3.31mm |
| Slot Depth | 3mm |
