Product Details

  • Log In for Price
  • Available Only in Quantities of: 0
  • Case Quantity: 100
  • Log in to see if custom discounts apply
Locations Availability
METRIC THREADED PRODUCTS In Stock
item image

6038010050

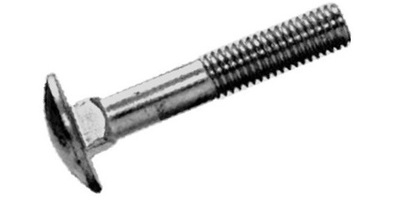

M10-1.50 x 50 Carriage Bolt, Class 8.8 Black.

  • Log In for Price
  • UM: C
  • Weight: 0.0858
  • DIN 603, ISO 8677 Carriage bolts are a type of bolt specialised for use in woodworking, in particular, fastening metal to wood. Carriage bolts are designed with a domed head and square neck, which can prevent loosening from one side, an enlarged head shape also prevents the bolt from being pulled through a wooden construction
Product Specifications
Diameter M10
Thread Pitch 1.50
Length 50mm
Head Wd. 24.65mm
Head Ht. 5.38mm
Neck Dia. 10.0mm
Neck Ht. 6.0mm
Thread Len. 26mm
