Product Details
69282S9025100

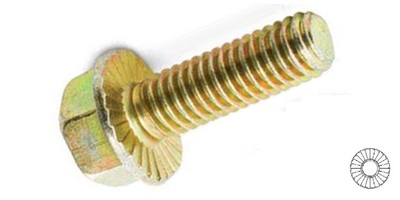

1/4-20 x 1 Serrated Hex Flange Bolt, Grade 5 Yellow Zinc
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | Out of Stock |
69282S9025100
1/4-20 x 1 Serrated Hex Flange Bolt, Grade 5 Yellow Zinc
- Log In for Price
- UM: C
- Weight: 0.0200
- Head Type and Drive: Hex Flange Serrated, External Hex
- Specification: IFI-111
- Thread Specifications: IFI-111 Coarse Right Hand External Thread Fit Class 2A
- Material and Hardness: Alloy Steel in Accordance to SAE J429 for Grade 5, HRC 25-34
- Grade 5 in Accordance to SAE J429, Tensile Strength 120,000 PSI
- Plating Finish: Yellow Zinc Cr6 Hexavalent Passivated and Bake
- REACH and RoHS: Not REACH and RoHS Compliant
- Country of Origin: Taiwan, China, Vietnam, or South Korea
- Material Test Report Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | 1/4 |
| Thread Pitch | 20 |
| Length | 1" |
| Head Wd. | 3/8" |
| Head Ht. | .281" |
| Flange Dia. | .562" |
| Thread Len. | Full Thread |
