Product Details
9089512125

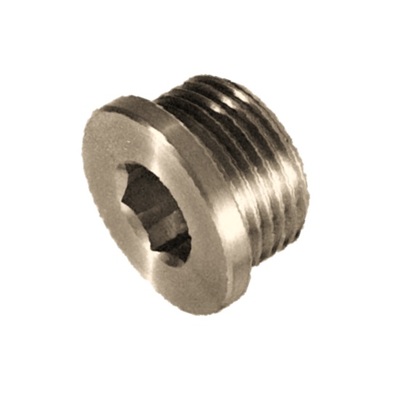

M12-1.25 Socket Pipe Plug, Flanged, Stainless Steel A2-50.
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | Out of Stock |
9089512125
M12-1.25 Socket Pipe Plug, Flanged, Stainless Steel A2-50.
- Log In for Price
- UM: C
- Weight: 0.0249
- Plug Type: Flange Socket Pipe Plug Straight Thread
- Specification: DIN 908
- Thread Specifications Metric ISO 965 Extra Fine Right Hand External Thread Fit 6g Tolerance
- Material: Stainless Steel in Accordance to ISO 3506-1 for Property Class A2-50 Fasteners
- Property Class A2-50 in Accordance to ISO 3506-1
- Finish: Stainless Steel Passivated
- REACH and RoHS: REACH and RoHS Complaint
- Country of Origin: Taiwan, China, Vietnam, Malaysia, or EU Countries
- EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | M12 |
| Thread Pitch | 1.25 |
| Length | 12mm |
| Head Wd. | 17mm |
| Head Ht. | 3mm |
| Drive Size | 6mm |
