Product Details

1189912025-1

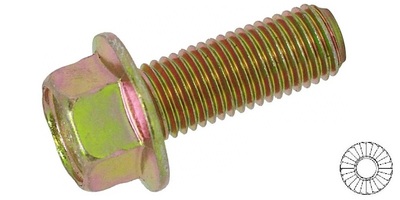

M12-1.75 x 25 Serrated Hex Flange Bolt, Class 10.9 Yellow Zinc

• Head Type and Drive: Hex Flange Serrated, External Hex
• Specification: Special
• Thread Specifications: Metric ISO 965 Coarse Right Hand External Thread Fit 6g Tolerance
• Material and Hardness: Alloy Steel in Accordance to ISO 898-1 for Property Class 10.9 Fasteners, HRC 32-39
• Property Class 10.9 in Accordance to ISO 898-1, Tensile Strength 1040 MPa N/mm² (150,000 PSI)
• Plating Finish: Yellow Zinc Cr6 Hexavalent Passivated and Bake
• REACH and RoHS: Not REACH and RoHS Complaint
• Country of Origin: Taiwan, China, Vietnam, South Korea, or EU Countries
• EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
