METRIC THREADED PRODUCTS In Stock
item image

6798V208001

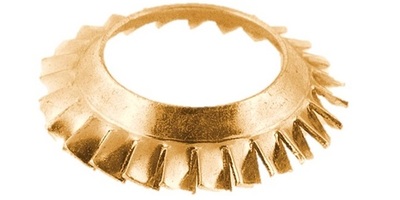

M 8 External Serrated Conical Lock Washer Steel/Yellow Zinc DIN 6798 V

  • Log In for Price
  • UM: C
  • Weight: 0.0001
  • Washer Type: External Serrated Conical Lock
  • Specification: DIN 6798 V
  • Material and Hardness: Spring Steel in Accordance to DIN 6798, HV 350-425
  • Plating Finish: Yellow Zinc Cr6 Hexavalent Passivated and Bake
  • REACH and RoHS: REACH and RoHS Complaint
  • Country of Origin: Taiwan, China, Vietnam, South Korea, or EU Countries
  • EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
Product Specifications
Screw Dia. M 8
Inside Dia. 8.4mm
Outside Dia. 15.3mm
Thickness .4mm
