Product Details
7504P59019200

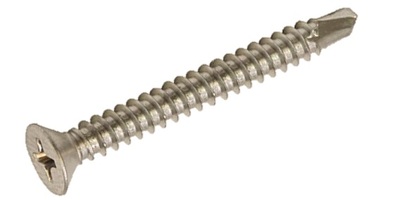

#10 x 1 Philips Flat Self Drilling Screw Stainless Steel ASME B18.6.4
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | Out of Stock |
7504P59019200
#10 x 1 Philips Flat Self Drilling Screw Stainless Steel ASME B18.6.4
- Log In for Price
- UM: C
- Weight: 0.0124
- Head Type and Drive: Countersunk Flat Head 100 Degree Taper, Philips Type H
- Specification: ASME B18.6.4
- Thread Specifications: Self Drilling in Accordance to ASME B18.6.4
- Material: 18-8 Stainless Steel in Accordance to ASTM F837 for Self Drilling Screw
- Plating Finish: Stainless Steel Passivated
- REACH and RoHS: REACH and RoHS Compliant
- Country of Origin: Taiwan, China, Vietnam, or South Korea
- Material Test Report Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | #12 |
| Thread Pitch | 14 |
| Length | 1" |
| Head Wd. | .425" |
| Head Ht. | .151" |
| Point Size | #3 |
