Product Details
799109T018062

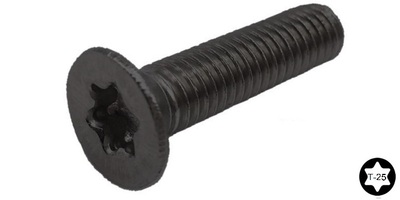

#10-24 x 9/16" Flat Head Torx Drive Cap Screw, Alloy Plain ASME B18.3
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | In Stock |
799109T018062
#10-24 x 9/16" Flat Head Torx Drive Cap Screw, Alloy Plain ASME B18.3
- Log In for Price
- UM: C
- Weight: 0.0048
- Head Type and Drive: Countersunk 100 Degree Taper, Torx
- Specification: ASME B18.3
- Thread Specifications: ASME B18.3 Coarse Right Hand External Thread Fit Class 3A
- Material and Hardness: Alloy Steel in Accordance to ASTM F835 for Alloy Sockets, HRC 37-44
- Alloy in Accordance to ASTM F835, Tensile Strength 135,000 PSI
- Plating Finish: Thermal Black Oxide
- REACH and RoHS: REACH and RoHS Compliant
- Country of Origin: Taiwan, China, Vietnam, or South Korea
- Material Test Report Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | #10 |
| Thread Pitch | 24 |
| Length | 9/16" |
| Head Wd. | .411" |
| Head Ht. | .127" |
| Drive Size | T-25 |
| Thread Len. | Full Thread |
