METRIC THREADED PRODUCTS In Stock
item image

912919037400-1

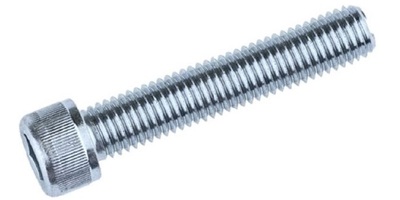

3/8-16 x 4" Socket Head Cap Screw Alloy Zinc ASME B18.3

  • Log In for Price
  • UM: C
  • Weight: 0.1326
  • Head Type and Drive: Standard Socket Head, Internal Hex
  • Specification: ASME B18.3
  • Thread Specifications: ASME B18.3 Fine Right Hand External Thread Fit Class 3A
  • Material and Hardness: Alloy Steel in Accordance to ASTM A574 for Alloy Sockets, HRC 39-44
  • Alloy in Accordance to ASTM A574, Tensile Strength 180,000 PSI
  • Plating Finish: Clear Zinc Cr3 Trivalent Passivated and Bake
  • REACH and RoHS: REACH and RoHS Compliant
  • Country of Origin: Taiwan, China, Vietnam, or South Korea
  • Material Test Report Available (Certification fees may apply, certificate must be requested at time of ordering)
Product Specifications
Diameter 3/8"
Thread Pitch 16
Length 4"
Head Wd. .563"
Head Ht. .375"
Drive Size 5/16"
Thread Len. Full Thread
