Product Details
9129593N025037

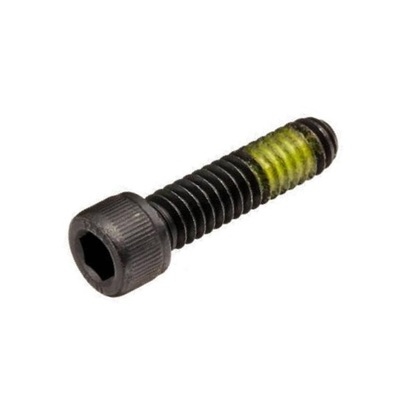

1/4-20 x 3/8" Socket Head Cap Screw w/Nylon Patch, Stainless Steel Black Oxide ASME B18.3
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | Out of Stock |
9129593N025037
1/4-20 x 3/8" Socket Head Cap Screw w/Nylon Patch, Stainless Steel Black Oxide ASME B18.3
- Log In for Price
- UM: C
- Weight: 0.0103
- Head Type and Drive: Standard Socket Head, Internal Hex
- Specification: ASME B18.3
- Thread Specifications: ASME B18.3 Coarse Right Hand External Thread Fit 18-8
- Material: Stainless Steel in Accordance to ASTM F837 for Stainless Sockets
- Stainless in Accordance to ASTM F837, Tensile Strength 80,000 PSI
- Plating Finish: Black Oxide and Wax
- Locking Nylon Patch in Accordance to IFI 524
- REACH and RoHS: REACH and RoHS Compliant
- Country of Origin: Taiwan, China, Vietnam, or South Korea
- Material Test Report Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | 1/4" |
| Thread Pitch | 20 |
| Length | 3/8" |
| Head Wd. | .375" |
| Head Ht. | .250" |
| Drive Size | 3/16" |
| Thread Len. | Full Thread |
