Product Details
7500C104025

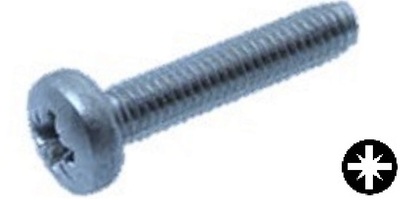

M 4 x 25 Pozi Pan Thread Forming Screw, Steel Zinc DIN 7500 C
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | Out of Stock |
7500C104025
M 4 x 25 Pozi Pan Thread Forming Screw, Steel Zinc DIN 7500 C
- Log In for Price
- UM: C
- Weight: 0.0059
- DIN 7500 C Philips Pan Thread Forming Screw is a generic term for any type of screw that forms its own threads into the mating material. The obvious advantage to thread forming screws is the elimination of nuts or a taping operation, which can save money and/or reduce the amount of parts used.
| Product Specifications | |
|---|---|
| Diameter | M 4 |
| Thread Pitch | 0.7 |
| Length | 25mm |
| Head Wd. | 8mm |
| Head Ht. | 3.1mm |
| Drive Size | # 2 |
| Thread Len. | Full Thread |
