Product Details

  • Log In for Price
  • Minimum Order Quantity: 100
  • Available Only in Quantities of: 0
  • Case Quantity: 1,000
  • Log in to see if custom discounts apply
Locations Availability
METRIC THREADED PRODUCTS In Stock
item image

912909013175

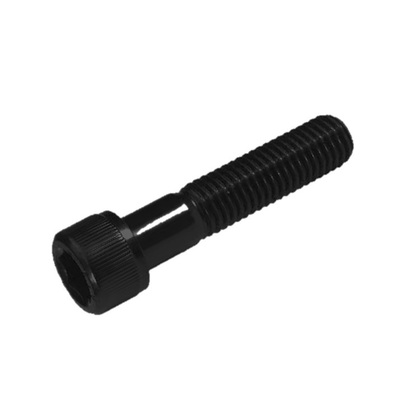

# 6-32 x 1 3/4" Socket Head Cap Screw Alloy Thermal Black Oxide ASME B18.3

  • Log In for Price
  • UM: C
  • Weight: 0.0073
  • Head Type and Drive: Standard Socket Head, Internal Hex
  • Specification: ASME B18.3
  • Thread Specifications: ASME B18.3 Coarse Right Hand External Thread Fit Class 3A
  • Material and Hardness: Alloy Steel in Accordance to ASTM A574 for Alloy Sockets, HRC 39-44
  • Alloy in Accordance to ASTM A574, Tensile Strength 180,000 PSI
  • Plating Finish: Clear Zinc Cr3 Trivalent Passivated with Sealer and Bake
  • REACH and RoHS: REACH and RoHS Compliant
  • Country of Origin: Taiwan, China, Vietnam, or South Korea
  • Material Test Report Available (Certification fees may apply, certificate must be requested at time of ordering)
Product Specifications
Diameter # 6
Thread Pitch 32
Length 1 3/4"
Head Wd. .226"
Head Ht. .138"
Drive Size 7/64"
Thread Len. 3/4"
