Product Details
966959018075

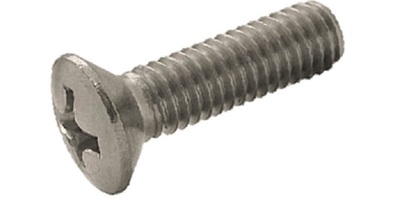

#10-24 x 3/4" Philips Oval Machine Screw, 18-8 Stainless Steel ASME B18.6.3
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | Out of Stock |
966959018075
#10-24 x 3/4" Philips Oval Machine Screw, 18-8 Stainless Steel ASME B18.6.3
- Log In for Price
- UM: C
- Weight: 0.0059
- Head Type and Drive: Oval Head, Philips Type H
- Specification: ASME B18.6.3
- Thread Specifications: ASME B18.6.3 Coarse Right Hand External Thread Fit Class 2A
- Material: 18-8 Stainless Steel in Accordance to ASTM F837 for Machine Screw
- Plating Finish: Stainless Steel Passivated
- REACH and RoHS: REACH and RoHS Compliant
- Country of Origin: Taiwan, China, Vietnam, or South Korea
- Material Test Report Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | #10 |
| Thread Pitch | 24 |
| Length | 3/4" |
| Head Wd. | .176" |
| Head Ht. | .060" |
| Drive Size | # 2 |
| Thread Len. | Full Thread |
