Product Details
798519018050

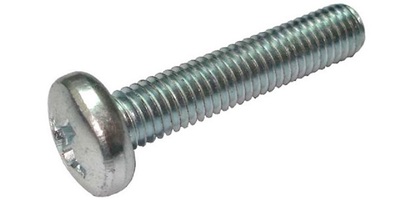

10-24 x 1/2" Philips Pan Machine Screw, Steel Zinc ASME B18.6.3
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | Out of Stock |
798519018050
10-24 x 1/2" Philips Pan Machine Screw, Steel Zinc ASME B18.6.3
- Log In for Price
- UM: C
- Weight: 0.0055
- Head Type and Drive: Pan Head, Philips Type H
- Specification: ASME B18.6.3
- Thread Specifications: ASME B18.6.3 Coarse Right Hand External Thread Fit Class 2A
- Material and Hardness: Low Carbon Steel in Accordance to ASTM A574 for Machine Screw, HRB 69-100
- Plating Finish: Clear Zinc Cr3 Trivalent Passivated
- REACH and RoHS: REACH and RoHS Compliant
- Country of Origin: Taiwan, China, Vietnam, or South Korea
- Material Test Report Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | 10" |
| Thread Pitch | 24 |
| Length | 1/2" |
| Head Wd. | .492" |
| Head Ht. | .175" |
| Drive Size | # 3 |
| Thread Len. | Full Thread |
